AFL TELECOMMUNICATIONS
FASTConnect Multimode 62.5/125 (6 Pack)
$116.37
Wholesale customer? Sign in to see your pricing.
Need a larger quantity? Get volume pricing on a commercial quote.
Request a Quote- Local warehouse + will call
- Ships from our warehouse
- Wholesale pricing for account customers
- Questions about this part? Ask Coleman's
Description

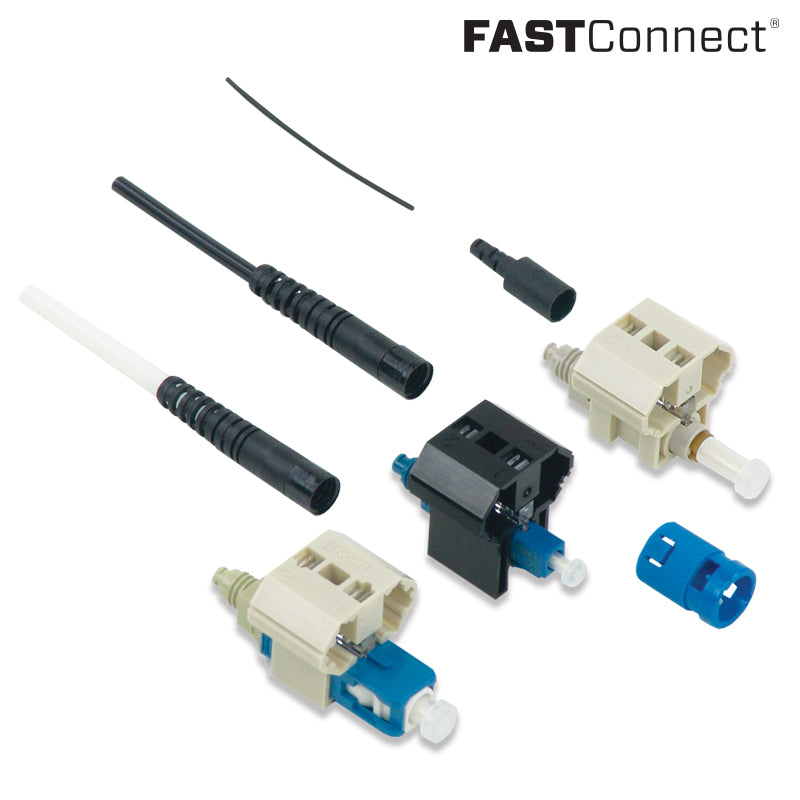

FASTConnect® field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
FASTConnect® connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.
FASTConnect® connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.
Specifications
| Manufacturer | AFL TELECOMMUNICATIONS |
|---|---|
| Product type | Fiber Connectors |
| SKU / Part # | FAST-LC-MM62.5-6 |
| Color | Beige |
| Mode | Multimode/OM1 |
| FASTConnect | LC |
