LYNN/PLATINUM TOOLS

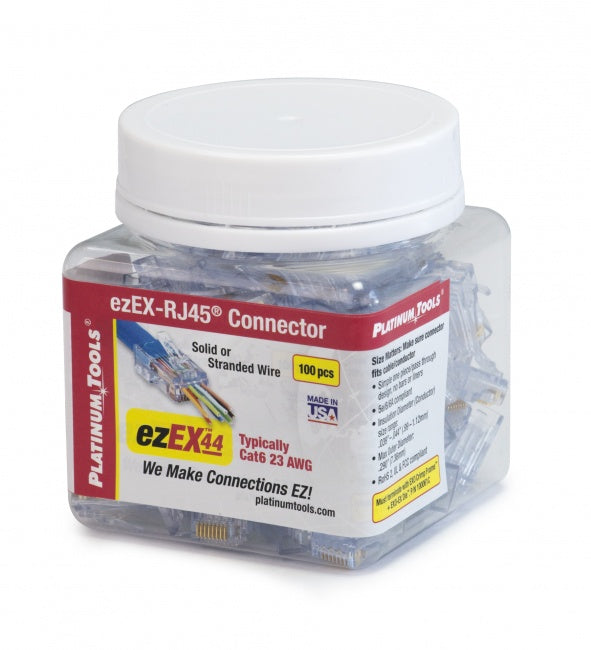

ezEX44 Connectors (100 Jar)
$94.15
Wholesale customer? Sign in to see your pricing.
Currently out of stock.
We may be able to source it or suggest an equivalent. Ask our team.
Ask About AvailabilityNeed a larger quantity? Get volume pricing on a commercial quote.
Request a Quote- Local warehouse + will call
- Ships from our warehouse
- Wholesale pricing for account customers
- Questions about this part? Ask Coleman's
Description
The patented ezEX44 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 (Sm. Cat6A) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .039” – .044” (1.0 –1.12mm)
- Max Outer Diameter: .290” (7.36mm)
- 50 micron gold plated contacts
- 5e/6/6A compliant
- Solid or Stranded 24-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat6 (Sm. Cat6A)
- Made in the USA
Specifications
| Manufacturer | LYNN/PLATINUM TOOLS |
|---|---|
| Product type | Connector |
| SKU / Part # | 202044J |
| Packaging | 100 Pack |
